External API

ROADMAP.md 0.17.0 — the same REST API legendarr_web already calls internally to drive the dashboard, documented and exposed for scripts and other tools instead of only ever being called by the bundled web UI.

Base URL

The API is mounted at /api on the same process/port as the web UI — e.g. http://localhost:8000/api/media/movies. There's no separate service or port to expose.

Authentication

Every route requires either an X-Api-Key header or a logged-in browser session, unless login is disabled (Settings → General, see Authentication). For scripts, use the API key shown there:

curl -H "X-Api-Key: <your-api-key>" http://localhost:8000/api/media/movies

/api/webhooks/* is the one exception — Radarr/Sonarr's "Connect" calls can't send custom headers, so it's unauthenticated by design (see src/backend/src/legendarr_backend/media_library/webhooks.py); nothing else should call it.

Endpoint reference

The full, always-current endpoint list — grouped by domain (Media Library, Language Profiles, Subtitle Providers, Subtitle Proxies, Translation Providers, Metadata Providers, Arr Services, Settings, System, Authentication, Webhooks) — is generated straight from the code, not hand-maintained here:

  • Swagger UI: /api/docs
  • ReDoc: /api/redoc
  • Raw OpenAPI schema: /api/openapi.json

All three are reachable without authentication, even when login is enabled — they only serve the schema/documentation, never data.

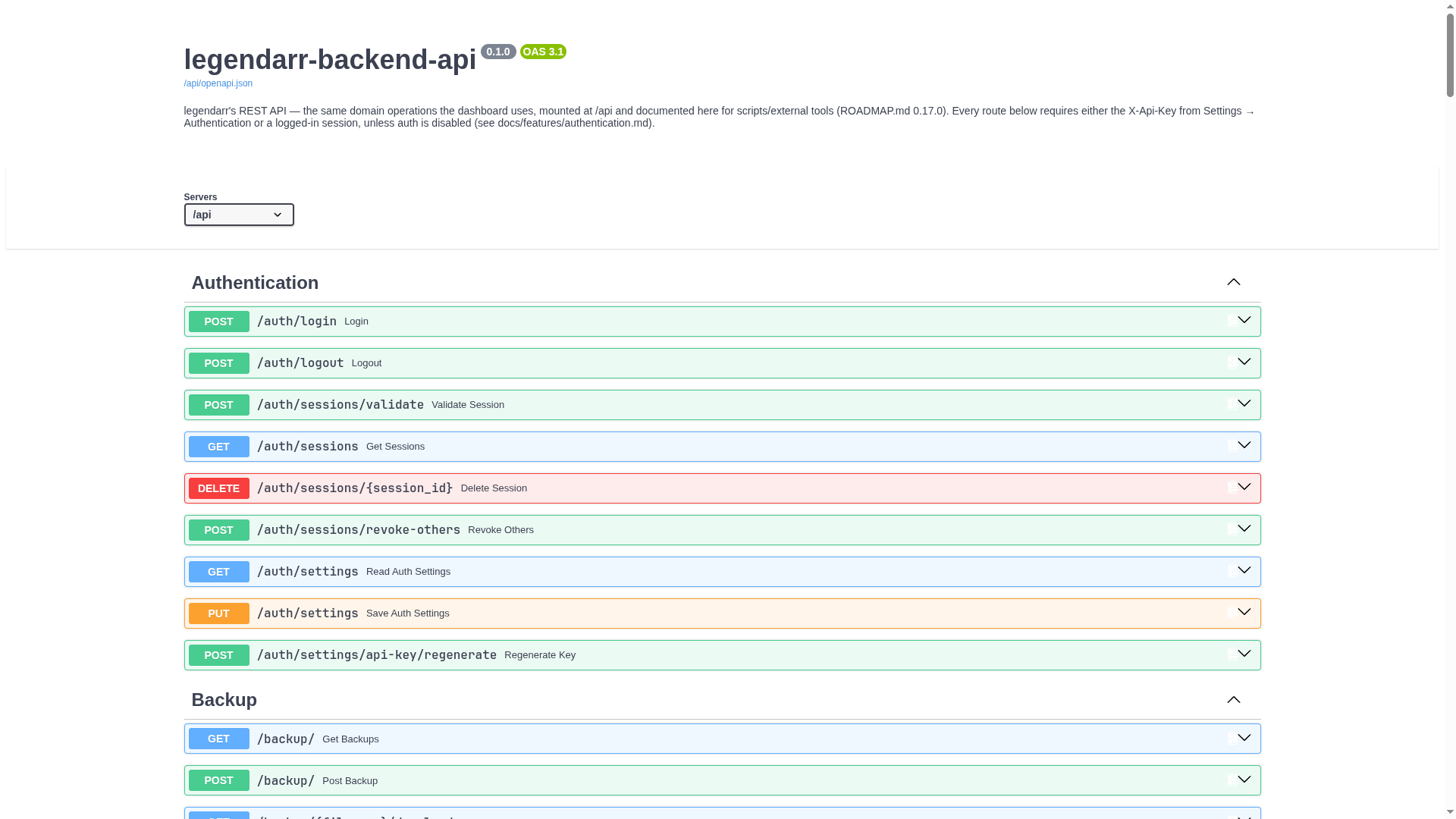

Swagger UI at /api/docs

Getting started

The domains most useful for scripting against an existing instance:

  • Media (/api/media/*) — list movies/series, trigger a scan/sync, search/download/ upload/translate a subtitle for a specific file.
  • Language profiles (/api/language-profiles/*) — CRUD for the profiles that decide what gets translated into what.
  • System (/api/system/*) — directory browsing, recent logs, currently running tasks.

Everything else the dashboard's Settings pages configure (Radarr/Sonarr connections, subtitle/translation/metadata providers, subtitle proxies, task/webhook settings) is exposed the same way, under its own tag in /api/docs.
